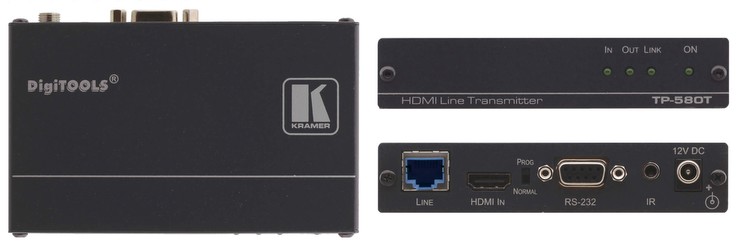

Kramer TP-580T

The TP−580T is a high−performance. HDBaseT twisted pair transmitter for HDMI. bidirectional RS−232 and IR signals. The TP−580T inputs HDMI. RS−232. and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580R receiver.- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).- HDTV Compatible.- HDCP Compliance.- HDBaseT Technology.- HDMI Support - Deep Color. x.v.Color. Lip Sync. HDMI Uncompressed Audio Channels. Dolby TrueHD. DTS−HD. CEC.- 3D Pass-Through.- EDID PassThru - Passes EDID signals between the source and display.- 2K & 4K Support.- Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface. allowing status requests and remote control of the destination unit.- System Range - Up to 70m (230ft).- Cable - For optimum range and performance using HDBaseT. use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution. source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.- Indicators - Status LEDs for input. output. link and power.- Compact DigiTOOLS - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.

The TP−580T is a high−performance HDBaseT twisted pair transmitter for HDMI bidirectional RS−232 and IR signals. The TP−580T inputs HDMI RS−232 and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580R receiver. • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel). • HDTV Compatible. • HDCP Compliance. • HDBaseT™ Technology. • HDMI Support - Deep Colour x.v.Colour™ Lip Sync HDMI Uncompressed Audio Channels Dolby TrueHD DTS−HD CEC. • 3D Pass-Through . • EDID PassThru - Passes EDID signals between the source and display. • 2K & 4K Support. • Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface allowing status requests and remote control of the destination unit. • System Range - Up to 70m (230ft). • Cable - For optimum range and performance using HDBaseT™ use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges. • Indicators - Status LEDs for input output link and power. • Compact DigiTOOLS - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter. Applications • Projection systems in conference rooms boardrooms auditoriums hotels and churches production studios. Features HDMI ports quantity 1 Connections Inputs: 1 HDMI connector / Outputs: 1 HDBaseT twisted pair RJ−45 connector Weight 0.6 Kg

Kramer electronics tp-580t. Color: Black Width: 18.8 cm Depth: 11.4 cm Height: 2.4 cm. Input voltage: 12 V

TP-580T Kramer Digital A/V Cable , Rs-232 , Ir , Over Hdbaset , Tx , 70M, Computers/Tablets & Networking > Home Networking & Connectivity > Boosters, Extenders & Antennas

Kramer electronics tp-580t. Color: Black Width: 18.8 cm Depth: 11.4 cm Height: 2.4 cm. Input voltage: 12 V
